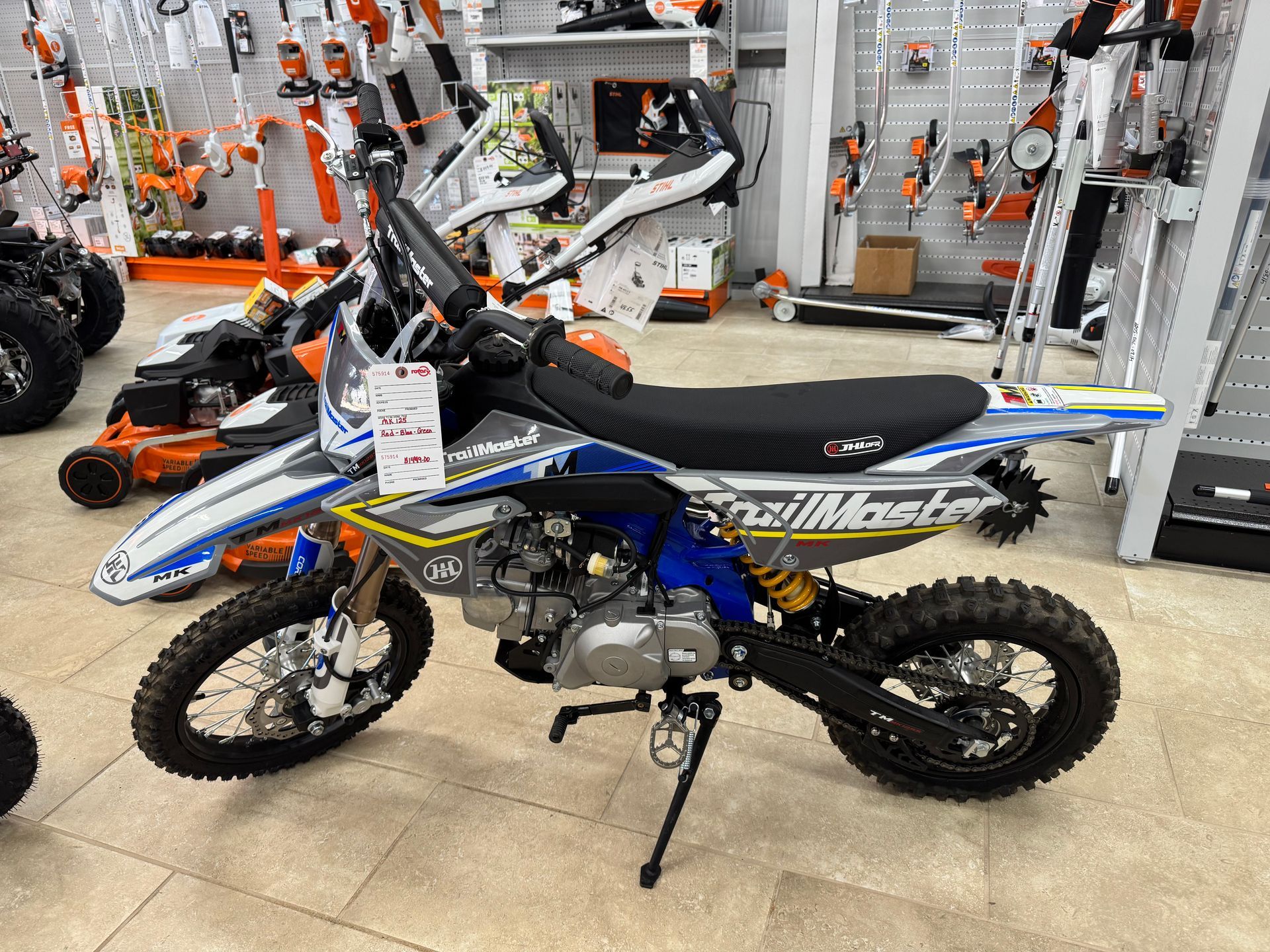

MK125S PRO DIRT BIKE SEMI-AUTO

MK125S (JHL Pro-Series) Dirt Bike

General Information

• BS125 Single cylinder, four stroke ,

air-cooling

• Displacement 123.67 CC

• Max Power 8.4 hp

• Max Torque 8.8/5500（1±1.5%）

• Compression Ratio 9.0:1

• N-1-2-3-4, Four-Gear, Auto Clutch

• Electric / Kick Start

• Ignition CDI

• Min. Fuel Consumption: ≤

367g/kw.h

• Min turning radius: 1900 mm

• Lubricant Type # SF15W/40

• Transmission: Chain Drive

Size Data

• Overall Size (L x W x H)

63.82*27.58*42.9 Inch

• Wheel Base 45.31 Inch

• Seat Height 29.55 Inch

• Ground Clearance 10.24 Inch

• Fuel Capacity 0.92 Gal.

• Steel Rims, High Quality Alloy Hubs

• Tires YUANXING FT: 60/100 -14

RR: 80/100 -12

Frame/Suspension/Brake/Wheel System

• High quality Steel Frame

• Inverted front shocks 43/45mm

• Rear Not adjustable mono shock

• Upper & Lower Connecting Board

Alloy

• Handle Lever Foldable

• Front Brake Disc

• Rear Brake Disc

• Exhaust: Stainless steel muffler

Packing and Loading

• Packing Size 55.95 *17.34*33.88”

• N.W 149.6 LBS

• G.W 213.4 LBS

Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”

www.bvpowersports.com

MK125S Key features:

• Electric and kick start

• N-1-2-3-4, Four-Gear, Automatic Clutch

• Famous brand name Zongshen engine

• Newly designed strong frame

• 29.5 inch seat height fits wide age group riders

• Inverted front shock absorber

• Nitrogen air gas rear shock absorber

• Performance stainless steel muffler

• Alloy foldable handle levers

• High quality alloy rims and hubs

• Quality front and rear disc brakes
