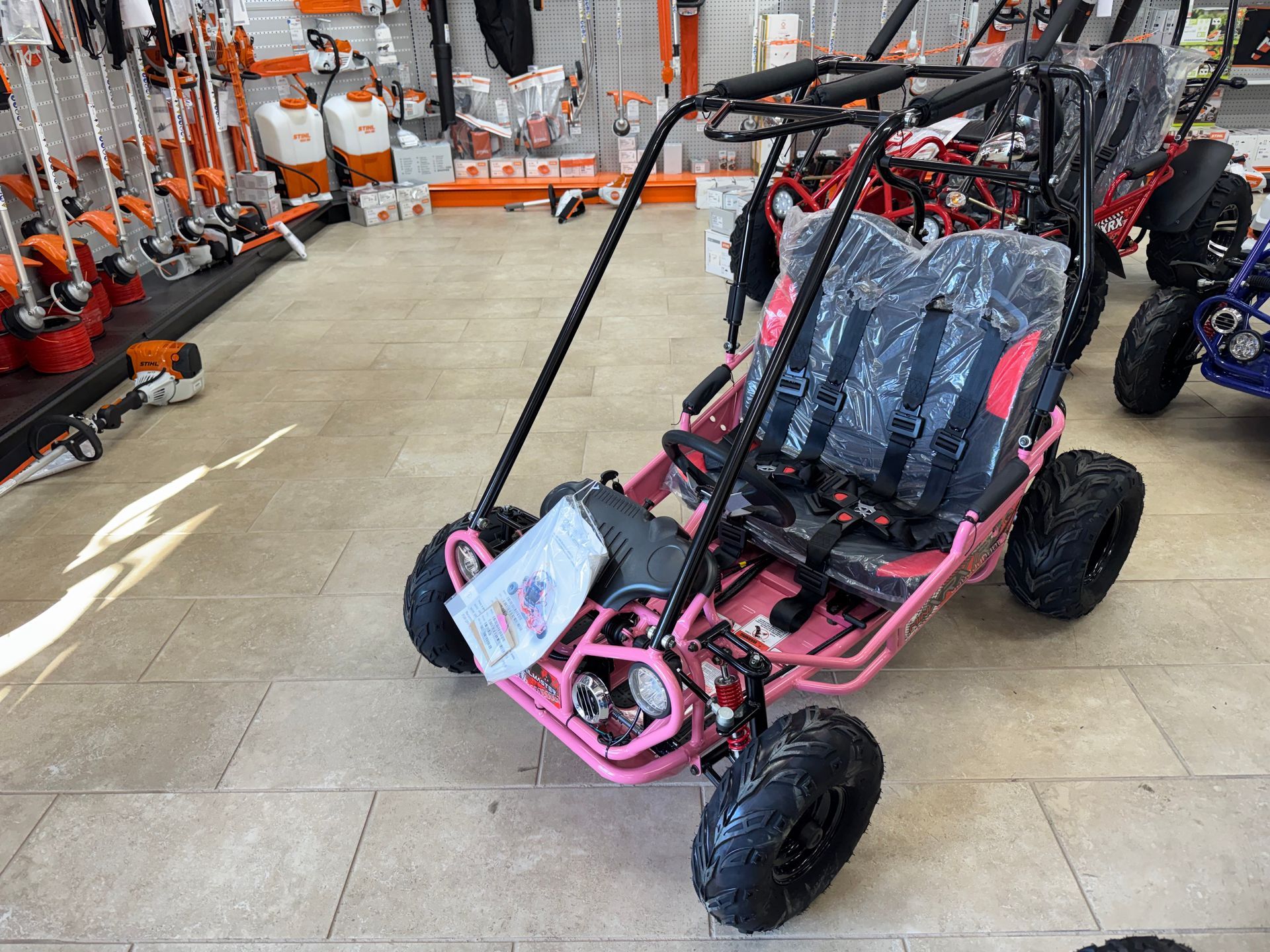

GO KART MINI XRX/R

MINI XRX/R+

Engine Information

• Engine type: 4-stroke, single

cylinder, air cooled

• Displacement: 163cc

• Max HP: 5.5hp/3600rpm

• Max torque: 8 lb ft/3600rpm

• Bore x stroke: 2.6 x 1.8 inches

• Max speed: 12.4mph

• Climbing ability: 12 degrees

• Ignition: C.D.I

• Starting system: Electric Start with

Pull Start Backup

• Battery: 12V 9Ah

• Carburetor brand: JF (RX)

• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic w/Reverse

• Driveline / Driving wheel: Chain /

Dual wheel drive

• Suspension, F / R: Dual A-arm /

Double Oil Damped Shock

• Brakes: Disc

• Tires, F / R: 145X70-6 / 16 X8-7

• Fuel capacity: 1.2 gal

• Weight, G.W. / N.W.: 280 / 232 lbs

• Max load: 300 lbs

Dimension Information

• Wheelbase: 42.6 inches

• OA L x W x H: 58.7x38.2x48.8 inches

• Height to seat: 13.6 inches

• Min ground clearance: 4.02 inches

• Pedal to seat back: 30” to 35”; Pedal

can also adjusted to 3” or 6” shorter.

www.bvpowersports.com

MINI XRX/R+ - Key features:

1) Live Axle

2) Two-wheel Drive

3) Electric Start w/Pull Start Back

Up

4) LED Headlight

5) Remote Start/Kill

6) Adjustable Sports Seat

7) Adjustable Pedal

8) Five Point Safety Seatbelt

9) Speed Governor

10) Horn

11) Age Group: 4-12 yrs;
