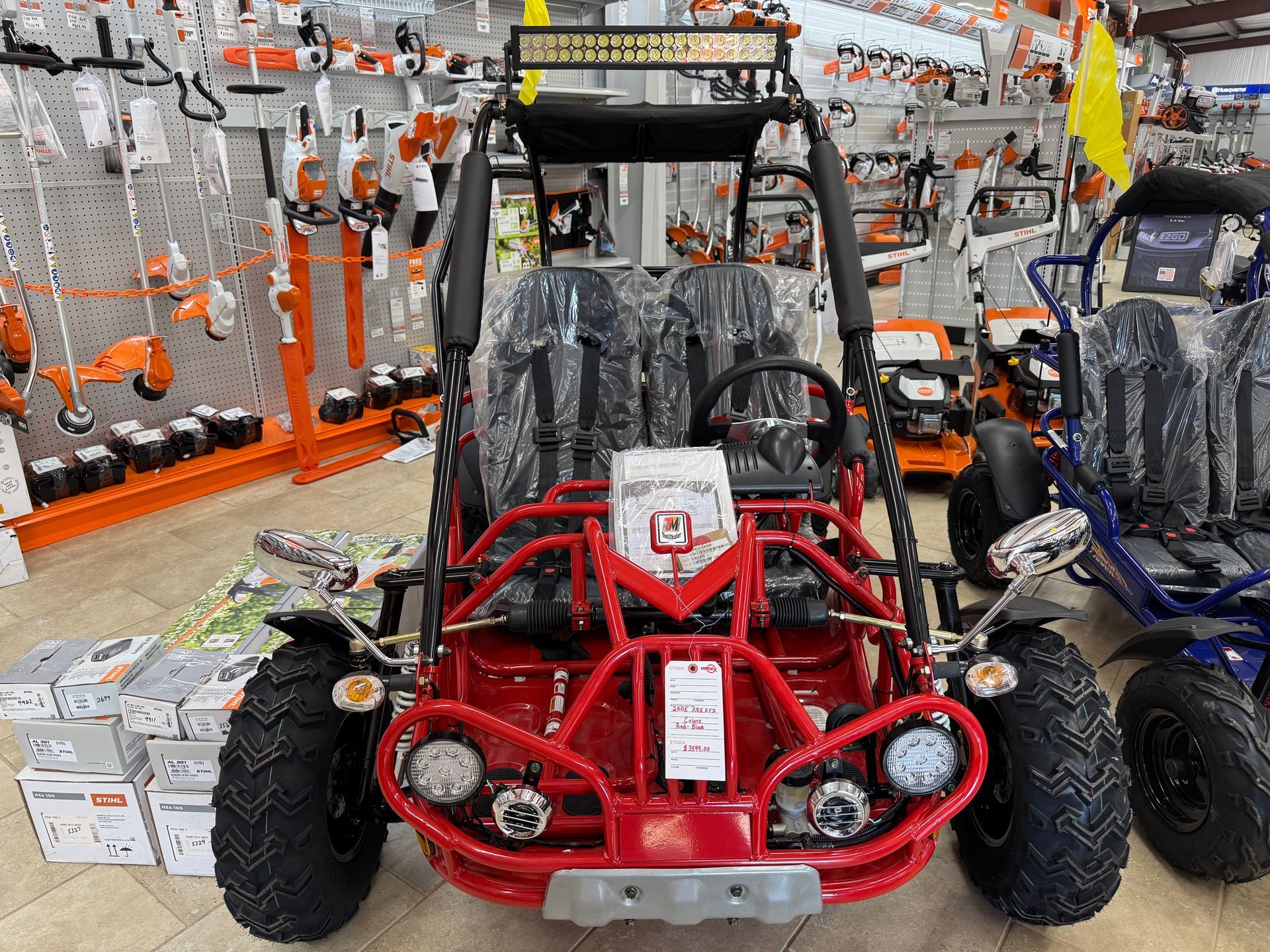

GO KART 200E XRX/R

200E XRX Specifications

Engine Information

• EPA certificated

• Engine type: 4-stroke, single

cylinder, air cooled

• Displacement: 168.9cc

• Max HP: 11.1hp/8000rpm

• Max torque: 8.1 lb ft/6000rpm

• Bore x stroke: 2.4x2.28 inches

• Max speed: 43 mph

• Climbing ability: 18 degrees

• Ignition: ECU

• Starting system: Electric

• Battery: 12V 10Ah

• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic CTV with reverse

• Driveline / Driving wheel: Chain / Dual

wheel drive

• Suspen F / R: Double A-arm / swing-arm

• Brakes, F / R: Both hydraulic brakes, Disc

• Tires, F / R: 22x7-10 / 22x10-10

• Wheel: Aluminum

• Fuel capacity: 2.25 gal

• Shipping / Net Weight: 661 / 533 lbs

• Max load: 500 lbs

Dimension Information

• Wheelbase: 61 inches

• OA L x W x H: 85x53.1x57.5 inches

• Crate size: 88X48X25 inches

• Height to seat: 13.8 inches

• Min ground clearance: 6.7 inches

• Pedal to seat back distance: 36” to

43”

www.bvpowersports.com

200E XRX Key features

• Fuel injection system operates under any

weather and at any altitude

• Fully automatic with reverse, high

performance 168.9cc GY6 engine with

internal F-N-R

• Alloy wheels with 22X7-10 front and

22X10-10 rear aggressive tires

• Top LED light bar

• Digital speedometer/odometer

• Aluminum side mirrors

• Turn signals

• Sporting steering wheel

• Five-point safety harness

• Electric start with kill switch

• Adjustable steering wheel

• Individual sports seats

• LED headlight

• Bikini sunshade top

• Adjustable driver seat: pedal to seat back

adjustable from 36” to 43”

• Rack and pinion steering wheel

• Front and rear hydraulic disc brake

• 4-point rear swing arm

• Parking brake

• Trailer hitch

• Large rear utility rack

• Large gas tank
