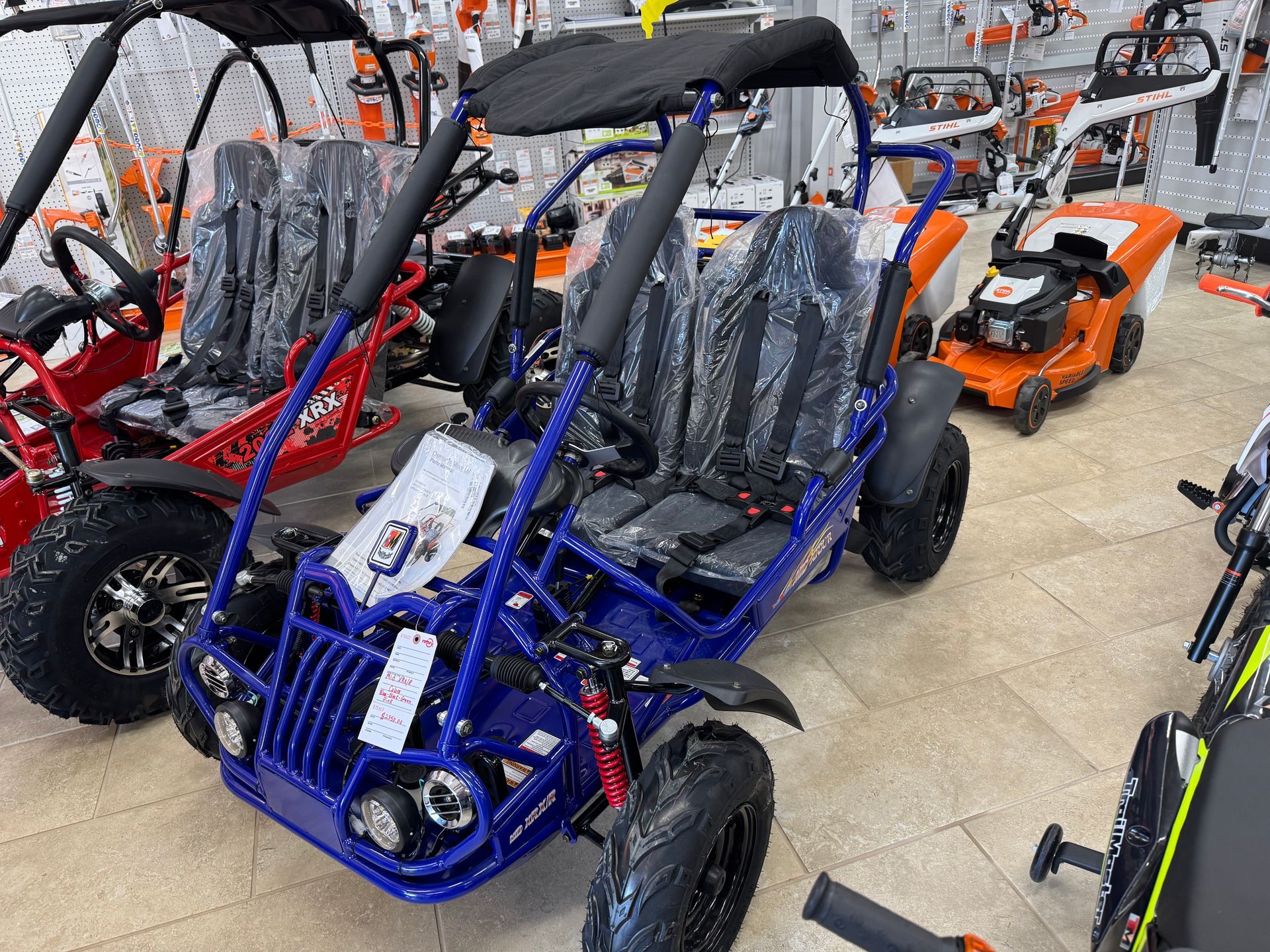

GO KART MID XRX/R

Mid XRX/R+

Engine Information

• EPA certificated

• Engine type: 4-stroke, single

cylinder, air cooled

• Displacement: 212cc

• Max HP: 7hp/3600rpm

• Max torque: 12.5N·m/2500 r/min

• Bore x stroke: ø70x55

• Max speed: 31mph

• Climbing ability: 12 degrees

• Ignition: C.D.I

• Starting system: Electric / Pull

backup

• Battery: 12V 9Ah

• Carburetor brand: JF (RX)

• Engine oil: SG15W-40

General Information

• Clutch: Automatic CVT with reverse

• Driveline / Driving wheel: Chain /

Dual wheel drive

• Suspension, F / R: Double A-arm /

Double Oil Damped Shock

• Brakes, F / R: No / Hydraulic brake,

Disc

• Tires, F / R: 16x6-8 / 16x7-8

• Fuel capacity: 1 gal

• Weight, G.W. / N.W.: 386 / 330 lbs

• Max load: 400 lbs

Dimension Information

• Wheelbase: 48.4 inches

• OA L x W x H: 67x43.3x51.2 inches

• Height to seat: 10.2 inches

• Min ground clearance: 2.8 inches

• Pedal to seat back distance: 34-39

inches

Mid XRX/R+ - Key features:

1) Live Axle

2) Two-wheel Drive

3) Electric Start w/Pull Start Back

Up

4) LED Headlight

5) Remote Start/Kill

6) Adjustable Sports Seat

7) Adjustable Pedal

8) Five Point Safety Seatbelt

9) Speed Governor

10) Horn
