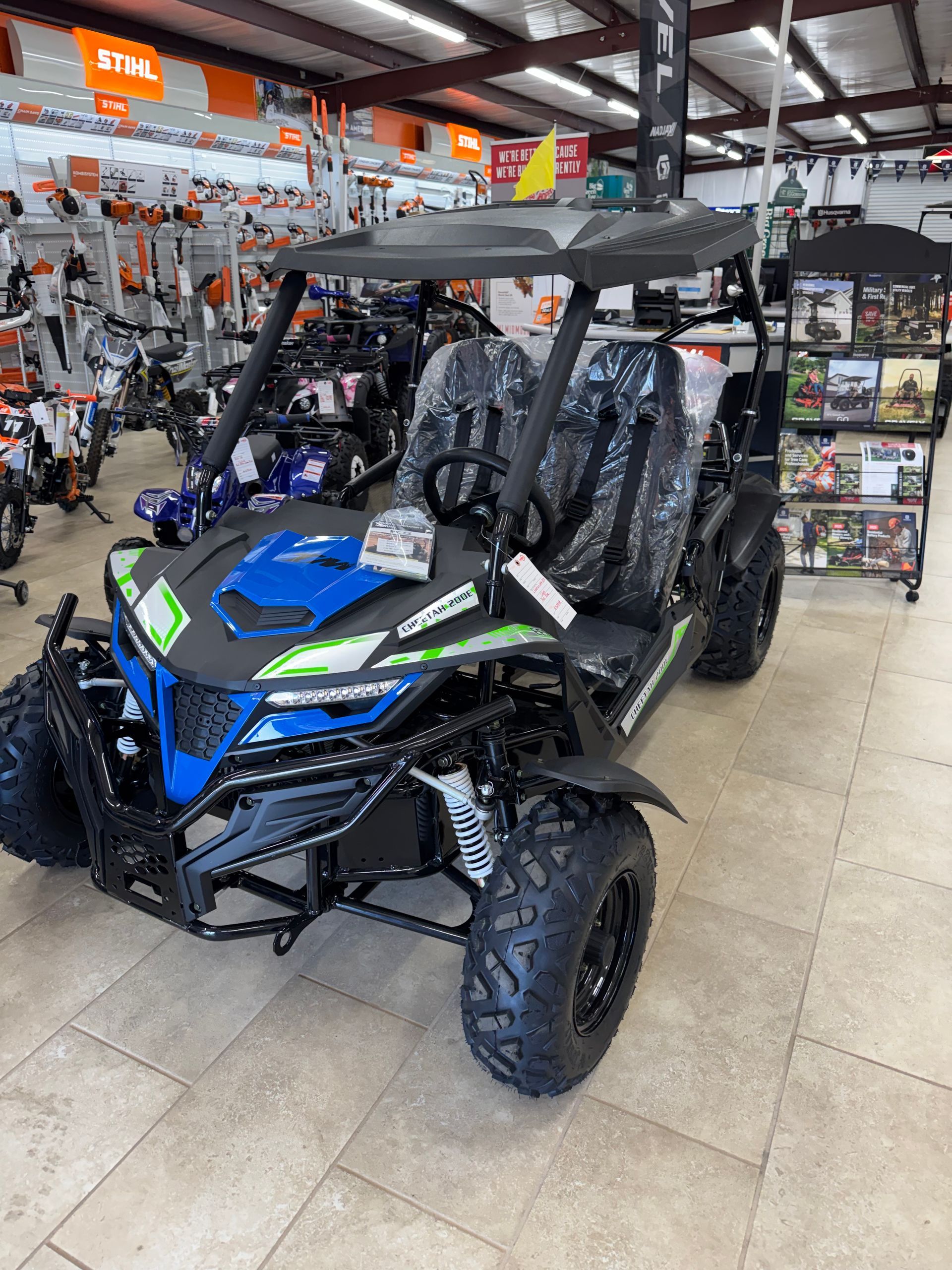

GO KART CHEETAH 200EFI

Cheetah 200E Specifications

Engine Information

• EPA certificated

• Engine type: 4-stroke, single

cylinder, air cooled (EFI)

• Displacement: 168cc

• Max HP: 8.2hp/7500rpm

• Max torque: 7 lb ft/6000rpm

• Bore x stroke: 2.26x2.28 inches

• Max speed: 38 mph

• Climbing ability: 12 degrees

• Ignition: C.D.I

• Starting system: Electric

• Battery: 12V 10Ah

• Carburetor brand: Deli (Vacuum film)

• Engine oil: SAE 15W-40

General Information

• Clutch: Automatic CTV with reverse

• Driveline / Driving wheel: Chain / Dual

wheel drive

• Suspension F / R: Double A-arm / swing

arm

• Brakes, F / R: Both hydraulic brakes, Disc

• Tires, F / R: 22x7-10 / 22x10-10

• Wheel: Steel

• Fuel capacity: 2.64 gal

• Weight, G.W. / N.W.: 650 / 521 lbs

• Max load: 500 lbs

Dimension Information

• Wheelbase: 71 inches

• OA L x W x H: 92.1x55x58.3 inches

• Height to seat: 18.5 inches

• Min ground clearance: 5.9 inches

• Pedal to seat back dist: 36” to 42
