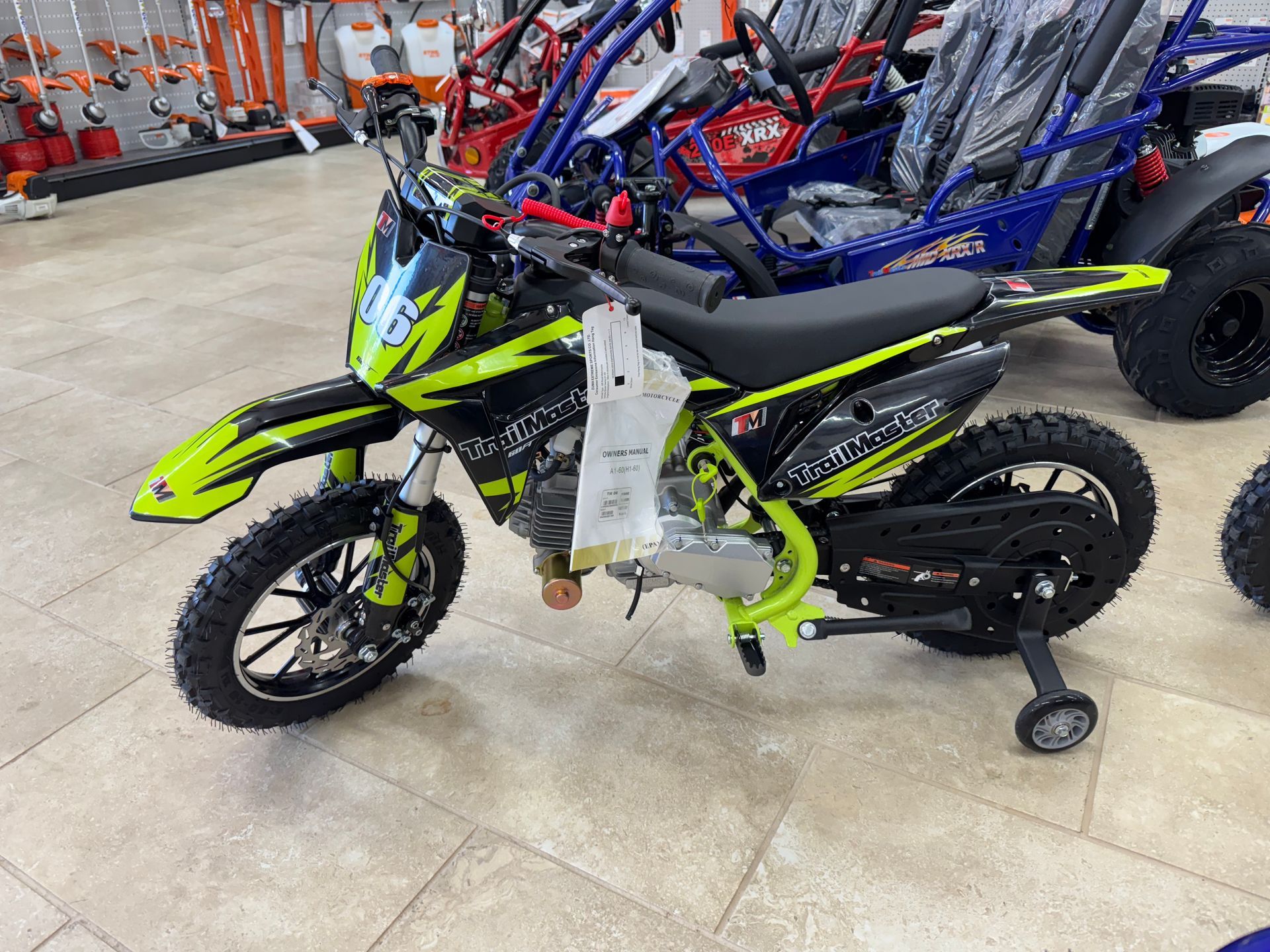

DIRT BIKE TM06 W/TRAINING WHEELS

TM06-60 (AUTO-EStart) Dirt Bike

General Information

• Engine Type 60cc, Automatic, Single

cylinder, 4 stroke, Air cooled

• Displacement 60 cc

• Shift Type Automatic clutch, One

gear

• Start Type Electric Start Only

• Bore x Stroke Ф52.4×49.5mm

• Max Power 2.4hp / 7000 kw/r/min

• Max Torque 2.4 / 6500 N.m/r/min

• Compression Ratio 10 : 1

• Engine Oil #： SJ5W一30

• Ignition CDI

• Drive Train #T8F，14/74T

Size Data

• Size(L*W*H) 50"X23.23"X30.71"

• Wheel Base 34.84"

• Seat Height 22.05"

• Ground Clearance 7.09"

• Fuel Capacity 1.8L / 0.4 Gal.

• Wheels Fr. & Rr. Both Steel 1.40

×10/￠12 Rims, Cast Hubs and Rim

• Tire Fr. & Rr. Both 2.50x10 ,Knobby

tires

Frame/Suspension/Brake/Wheel System

• Frame Cradle Type Steel Tube

• Front Fork L=520mm Inverted

Hydraulic Non Adjustable Forks,

50mm Travel

• Rear Shock L=200mm Non Adjustable

Shock, 30mm Travel

• Forged Steel Swingarm

• Handle Bar Steel

• Front Brake Mechanical Brakes,

140mm Disc

• Rear Brake Mechanical Brakes,

140mm Disc

• Exhaust Aluminium Alloy

• Packing Size 44.1*12.6*22.44 inch

• N.W/LBS 72.6 LBS

• G.W/LBS 81.4 LBS

Configurations And Specifications Subject To Change Without Notice. “BV POWERSPORTS, LLC”
